Repair procedures: Replacement: [Removal]
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the front pillar trim.
(Refer to "FRONT PILLAR TRIM ")

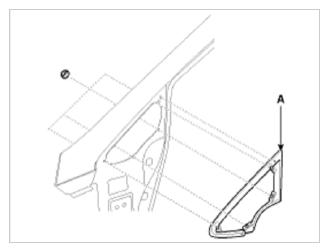

- Loosen the quarter fixed glass (A) mounting nuts.
Tightening torque:
3.9 ~ 4.4 N.m (0.4 ~ 0.45 kgf.m, 2.9 ~ 3.3 lb-ft)
- Cut out the quarter fixed glass sealant using the utility knife.NOTE:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
Information
- Remove the rubber dam and fasteners from the body.
- Mask off surrounding surfaces before painting.
- Remove the quarter fixed glass.
