Signal Waveform & Data

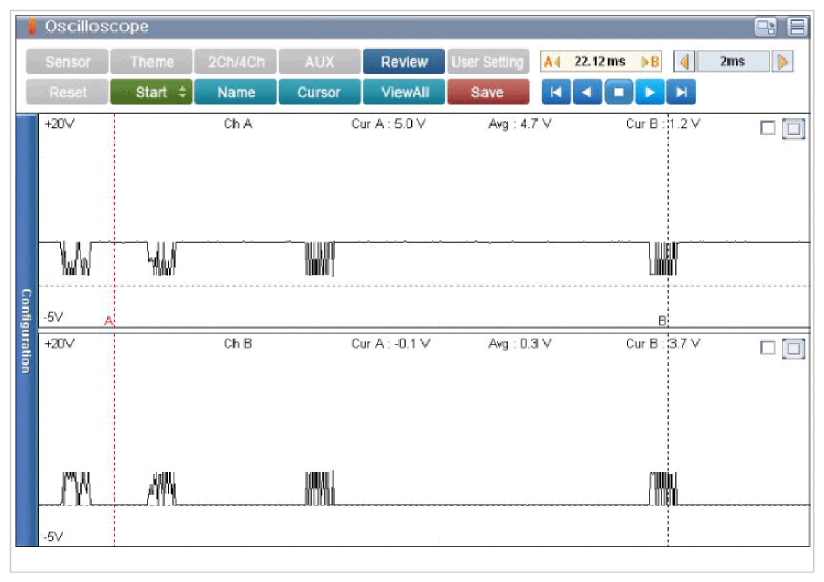

Fig 1: Scan Tool Display - CAN Low/High Signal Waveform Data Screen
G09745892Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Scan Tool Display - CAN BUS Voltage Level Screen (Low Speed CAN)
G09745893Courtesy of KIA MOTORS AMERICA, INC.
