Monitor GDS Data

  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "Diagnostic Trouble Codes (DTC)"  mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).

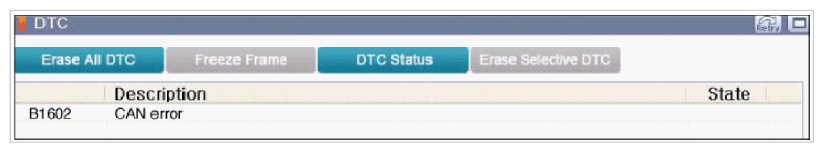

    Fig 1: Scan Tool Display - CAN Error DTC Screen
    G09745894Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the same DTC occurred again?

    YES

    • Go to next procedure.

    NO

    • Fault is intermittent caused by poor contact in the PSM's connector or was repaired and PSM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
