Repair Procedures: Removal

Remove the mirror wiring cover (A).
Disconnect the mirror connector (B).

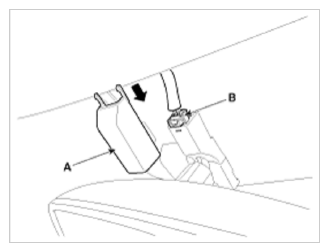

Fig 1: Identifying Mirror Wiring Cover And Mirror Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mirror mounting screw.
Push the mirror base up to remove the mirror assembly (A).

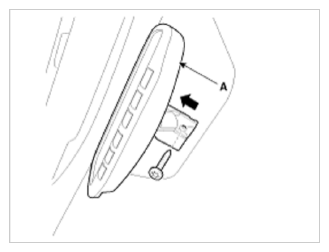

Fig 2: Removing Mirror Assembly
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Take care not to damage the mounting bracket during removal.
