Monitor GDS Data
- Ignition "ON" & Engine "OFF"

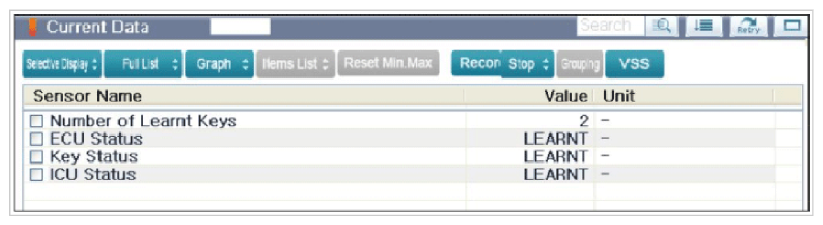

- After connecting GDS, Monitor the "Current Data" to check key status.
- Is the current data OK?
YES
- Cause of the malfunction would be if 2 TP approaches the ANT. Coil or intermittent comm. error or was repaired and ICU memory was not cleared.
If needed, erase memory using the GDS, then repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace with trial transponder and check whether problem persists. If the problem is resolved, replace the transponder and go to VERIFICATION OF VEHICLE REPAIR .
- If transponder is replaced, run Key registration using the GDS.
- Cause of the malfunction would be if 2 TP approaches the ANT. Coil or intermittent comm. error or was repaired and ICU memory was not cleared.
