Signal Waveform & Data

Fig 1: Display - Idle Status Screen
G09749566Courtesy of KIA MOTORS AMERICA, INC.

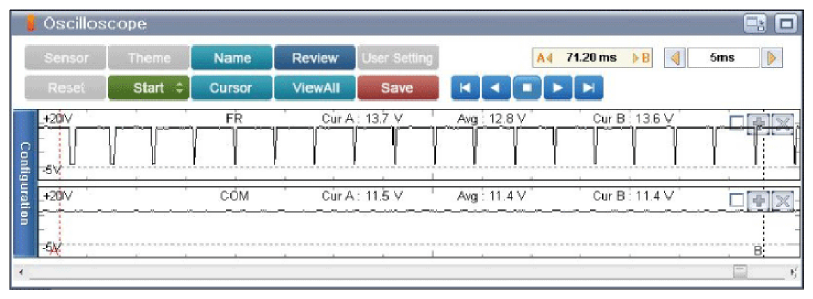

Fig 2: Display - Electrical Load Screen
G09749567Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON) ECM/PCM controls generation of alternator with duty from FR terminal when electrical Loads turn on
