Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor TPS related parameter on the "Current Data"  with GDS.

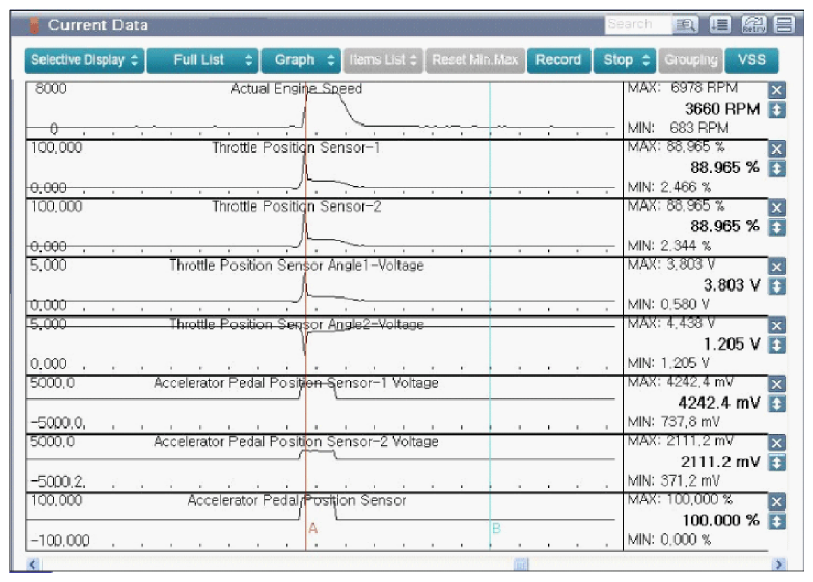

    Fig 1: Display - Change Under Condition Of Acceleration And Deceleration Screen
    G09749427Courtesy of KIA MOTORS AMERICA, INC.

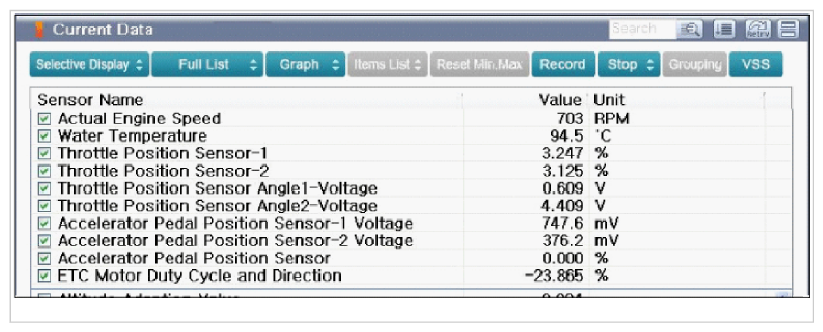

    Fig 2: Display - TPS And APS Under Idle State Screen
    G09749428Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
