Repair Procedures: Replacement

  1. Remove the crankshaft damper pulley.

    (Refer to "CRANKSHAFT DAMPER PULLEY ")

  2. Remove the front oil seal (A).

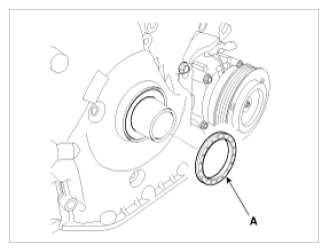

    Fig 1: Removing Front Oil Seal
    G09750720Courtesy of KIA MOTORS AMERICA, INC.
  3. Using SST (09231-3C100), install a new front oil seal.

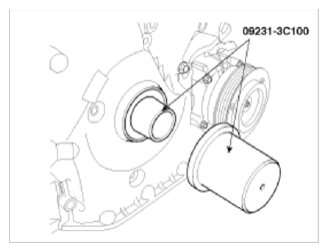

    Fig 2: Installing Front Oil Seal Using SST (09231-3C100)
    G09750721Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
    NOTE: Insert the front oil seal into the timing chain cover as shown in illustration.

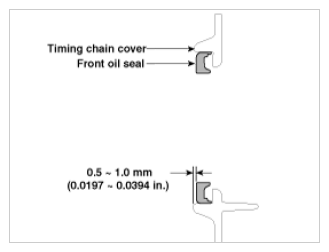

    Fig 3: Inserting Front Oil Seal Into Timing Chain Cover
    G09750722Courtesy of KIA MOTORS AMERICA, INC.
