Monitor DTC Status

Connect GDS and select "Diagnostic Trouble Codes (DTC)" mode.
Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
Read "DTC Status" parameter in DTC menu of the GDS.

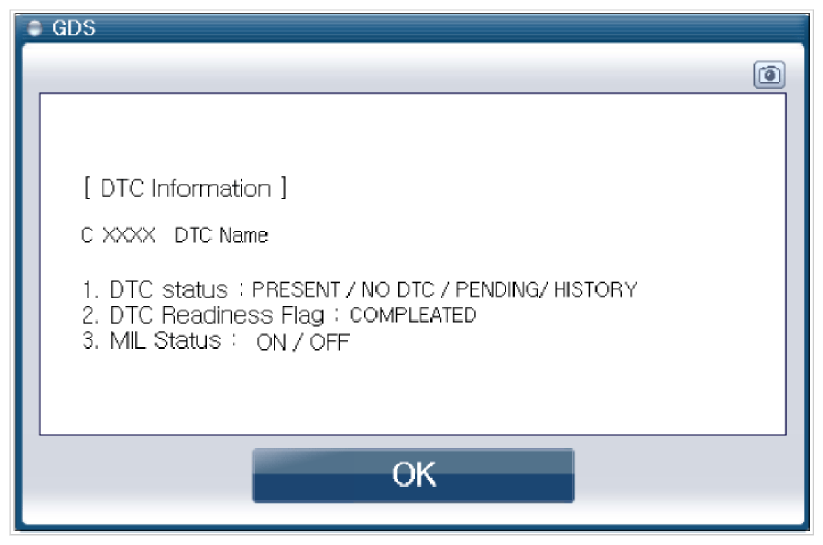

Fig 1: Display - DTC Information Message Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed "History (Not Present) fault"?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
