[Measuring Resistance]

  1. Disconnect the cruise control switch connector from the control switch.

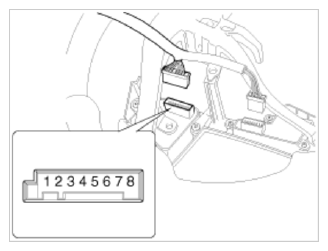

    Fig 1: Identifying Cruise Control Switch Connector Terminals
    G09751158Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
    Function switch Terminal Resistance (±5%) [kΩ]
    CANCEL 2 - 7 0.18
    SET- 2 - 7 0.33
    RESUME+ 2 - 7 0.55
    CRUISE 2 - 7 0.88
    SCC 2 - 7 2.54
  3. If not within specification, replace switch.
