Engine Mounting Bracket

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Install the jack to the edge of the upper oil pan to support the engine.

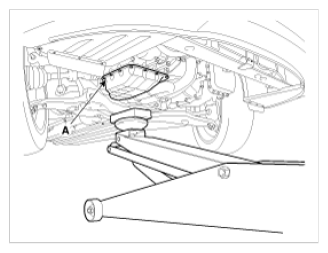

Fig 1: Installing Jack To Edge Of Upper Oil Pan To Support Engine
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert the rubber block between jack and upper oil pan.
Remove the engine mounting support bracket (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
Remove the engine mounting bracket (B).
Tightening torque:

58.8 ~ 73.5 N.m (6.0 ~ 7.5 kgf.m, 43.4 ~ 54.2 lb-ft)

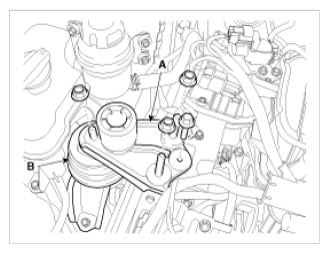

Fig 2: Identifying Engine Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
