Special Service Tools
| Tools (Number and name) | Illustration | Use |
|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |
Used for holding engine assembly when removing/installing transaxle. Used with the supporter (09200-2S200) and adapter (09200-1P100). |
|
| 09200-2S200 Engine support fixture (Supporter) |
Used for holding engine assembly when removing/installing transaxle. Used with the beam (09200-3N000) and adapter (09200-1P100). |
|
| 09200-1P100 Engine support fixture (Adaptor) |
Used for holding engine assembly when removing/installing transaxle. Used with the beam (09200-3N000) and supporter (09200-2S200). |
|
| 09453-3L240 Oil seal installer |
Installation of transaxle oil seal. Used with the handle (09231-H1100). |
|
| 09231-H1100 handle |
Installation of transaxle oil seal. Used with the oil seal installer (09453-3L240). |
|
| 09480-A3800 Inhibitor switch guide pin |

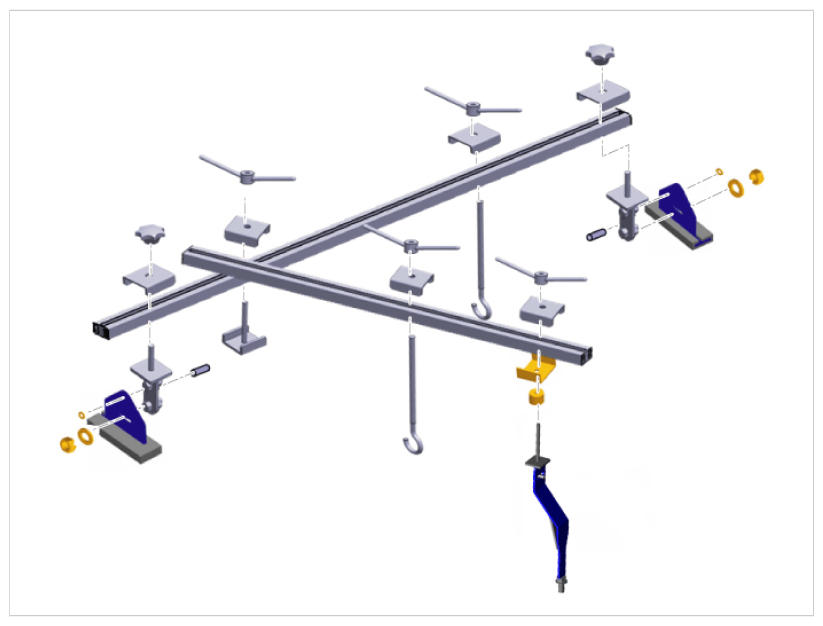

* Engine support fixture assembly drawing
