Repair Procedure: Removal

  1. Release the residual pressure in fuel line.

    (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

  2. Remove the floor mat after open the trunk.
  3. Remove the fuel pump service cover (A) in the trunk.

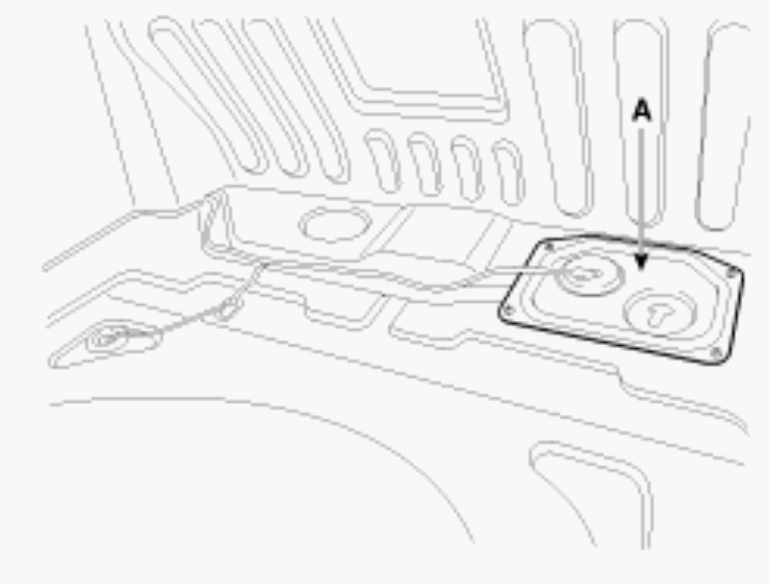

    Fig 1: Identifying Fuel Pump Service Cover
    G00551976Courtesy of KIA
  4. Disconnect the fuel feed tube quick-connector (A).
  5. Disconnect the fuel tank pressure sensor connector (B).
  6. Disconnect the fuel pump control module & fuel pump extension connector (C).

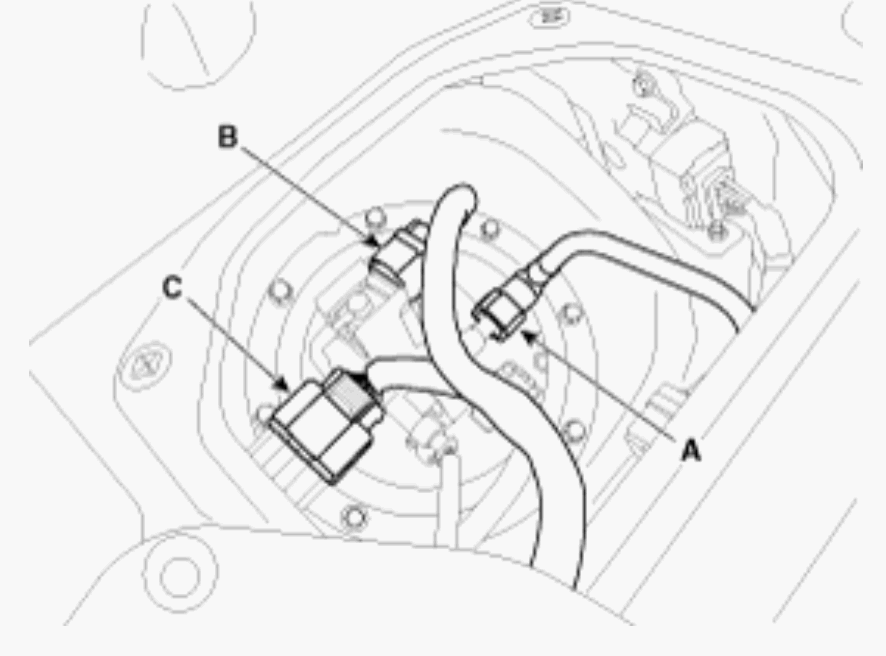

    Fig 2: Identifying Fuel Feed Tube Quick And Tank Pressure Sensor Connector
    G00551977Courtesy of KIA
  7. Lift the vehicle.
  8. Remove the main muffer. (Refer to "MUFFLER ")
  9. Support the fuel tank with a jack.
  10. Disconnect the fuel filler hose (A).

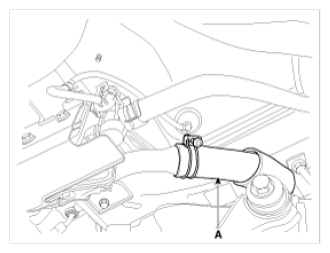

    Fig 3: Identifying Fuel Filler Hose
    G09751363Courtesy of KIA
  11. Disconnect the vapor hose quick-connector (A).

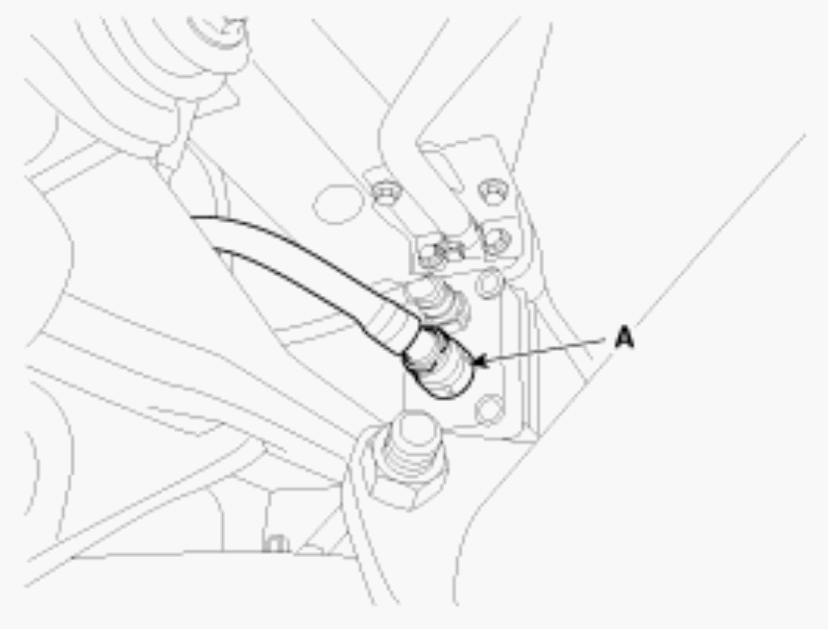

    Fig 4: Identifying Vapor Hose Quick-Connector
    G00551978Courtesy of KIA
  12. Remove the parking brake line (A). [NON - EPB type]

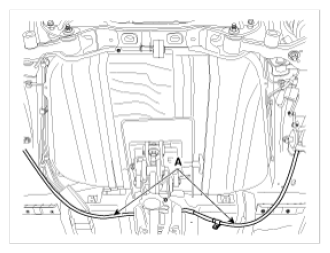

    Fig 5: Identifying Parking Brake Line
    G09751365Courtesy of KIA
  13. Remove the fuel tank bands (A) installation nuts.

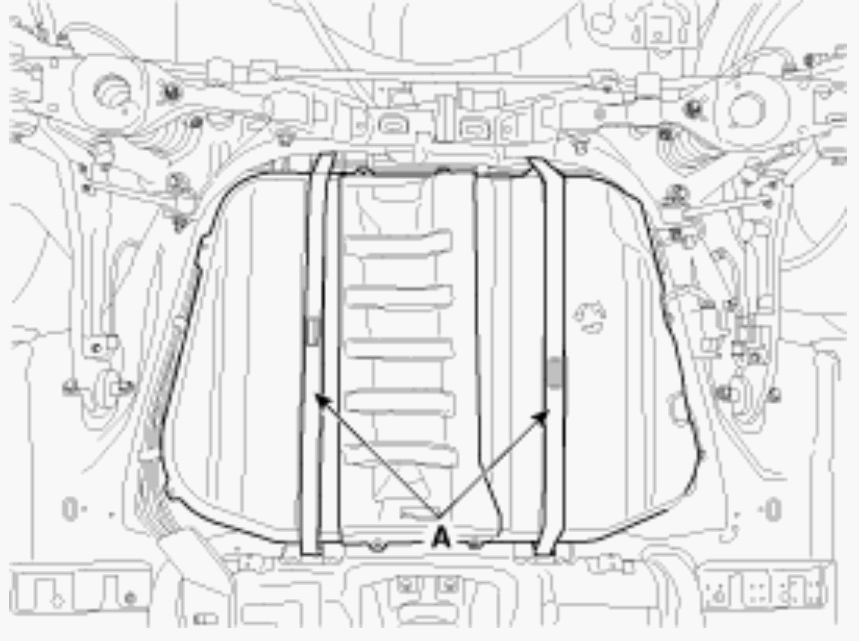

    Fig 6: Identifying Fuel Tank Bands
    G00551979Courtesy of KIA
  14. Remove the fuel tank after removing the fuel tank band (A) as below.

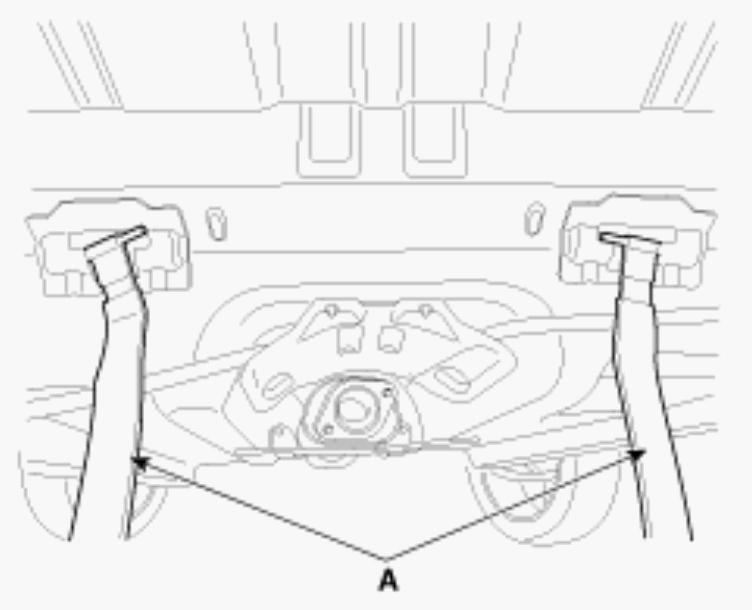

    Fig 7: Removing Fuel Tank Band
    G00551980Courtesy of KIA
