Repair Procedure: Removal

Remove the fuel pump.
(Refer to "FUEL PUMP ")

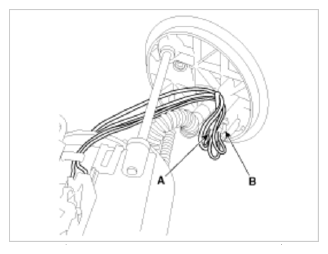

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connector
Courtesy of KIA

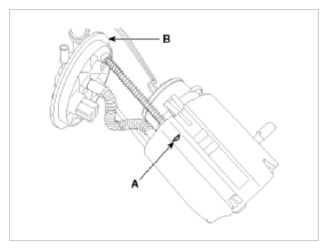

Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.

Fig 2: Identifying Cushion Pipe Fixing Clip And Head Assembly
Courtesy of KIA
Remove the return nozzle (B) after releasing the fixing hook (A).

Fig 3: Identifying Return Nozzle And Fixing Hook
Courtesy of KIA

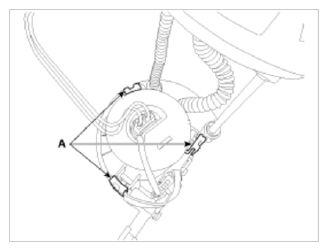

Remove the reservoir-cup after releasing the fixing hooks (A).

Fig 4: Identifying Fixing Hooks Of Reservoir-Cup
Courtesy of KIA

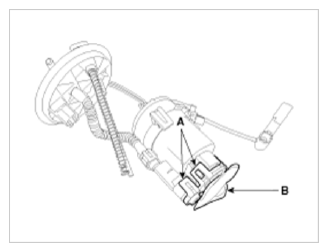

Remove the pre-filter (B) after releasing the fixing hooks (A).

Fig 5: Identifying Pre-Filter And Fixing Hooks
Courtesy of KIA

CAUTION: Be careful of O-ring.
Remove the fuel pressure regulator (A) in the direction.

Fig 6: Removing Fuel Pressure Regulator
Courtesy of KIA

Fig 7: Identifying Fuel Pressure Regulator
Courtesy of KIA
