Repair procedures: Removal

[Low pressure fuel line]

1. Turn the ignition switch OFF, and then remove battery (-) cable.
2. Release the residual pressure in fuel line.

   (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

3. Disconnect the low pressure fuel quick-connector (A) and remove the installation nuts (B) and bolts (C).

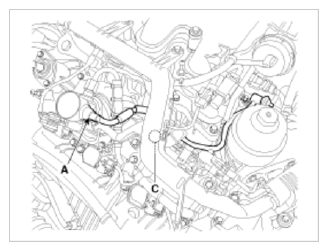

   Fig 1: Identifying Low Pressure Fuel Quick-Connector And Bolts

   Courtesy of KIA

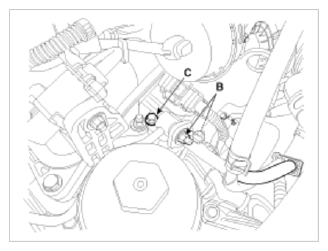

   Fig 2: Identifying Low Pressure Fuel Bolts And Nut

   Courtesy of KIA
   Fig 3: Identifying Fuel Line

   Courtesy of KIA
4. Disconnect the vapor hose (A) which is connected from the PCSV.

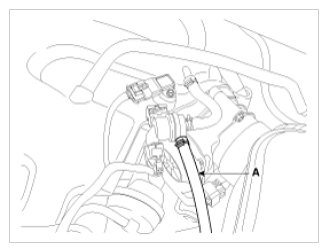

   Fig 4: Identifying Vapor Hose

   Courtesy of KIA
5. Remove the fuel tank.

   (Refer to "FUEL TANK ")

6. Disconnect the vapor tube quick-connector (A).

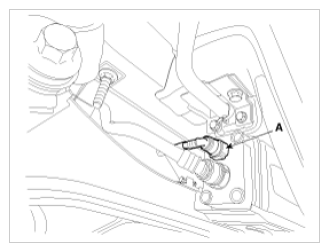

   Fig 5: Identifying Vapor Tube Quick-Connector

   Courtesy of KIA
7. Open the vapor tube and low fuel line fixing clip (A) to using driver.
8. Remove the installation bolt, and then release the fuel line fixing clip (B).
   Fig 6: Identifying Low Fuel Line Fixing Clip And Bolt

   Courtesy of KIA
9. Disconnect the fuel & brake line protect (A) from the fixing clip (B).

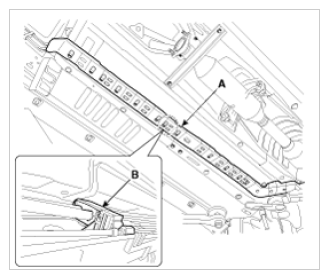

   Fig 7: Identifying Fuel And Brake Line Protect From Fixing Clip

   Courtesy of KIA
10. Disconnect the fuel line quick-connecter (A).

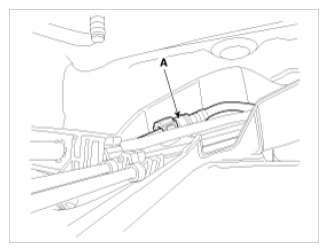

    Fig 8: Identifying Fuel Line Quick-Connecter

    Courtesy of KIA

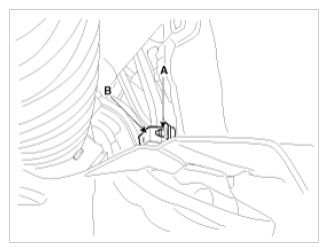

11. Remove the installation nut (A), and then open the fuel line fixing clip (B) to engine room low.
    Fig 9: Identifying Fuel Line Fixing Clip And Nut

    Courtesy of KIA
12. Remove the fuel line.

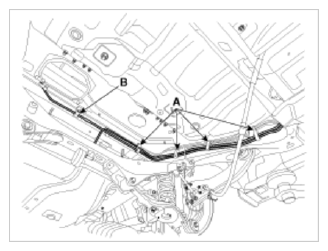

    Fig 10: Identifying Fuel Line

    Courtesy of KIA

[High pressure fuel line]

1. Turn the ignition switch OFF, and then remove battery (-) cable.
2. Release the residual pressure in fuel line.

   (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

3. Remove the intake manifold.

   (Refer to "INTAKE MANIFOLD ")

4. Remove the high pressure fuel pipe.

   (Refer to "HIGH PRESSURE FUEL PUMP ")

   Fig 11: Identifying High Pressure Fuel Pipe

   Courtesy of KIA
