Repair procedures: Removal

  1. Open the fuel filler door and then remove the filler-neck installation screw (A).

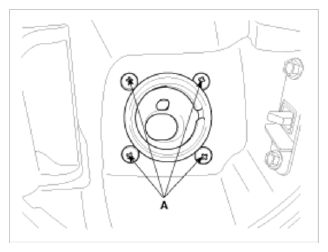

    Fig 1: Identifying Filler-Neck Screw
    G09751421Courtesy of KIA
  2. Lift the vehicle.
  3. Remove the rear-LH wheel, tire, and the inner wheel house.
  4. Disconnect the fuel filler hose (A).
  5. Disconnect the ventilation hose (B) from the fuel tank air filter.

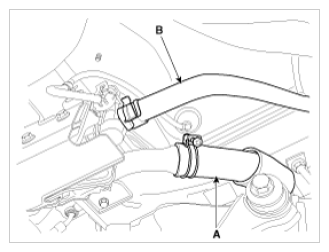

    Fig 2: Identifying Ventilation Hose From Fuel Tank Air Filter
    G09751422Courtesy of KIA
  6. Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).

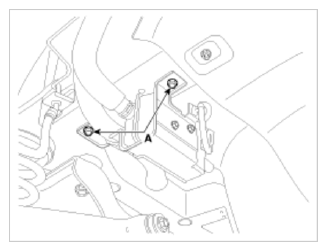

    Fig 3: Identifying Filler-Neck Assembly Bracket Bolt
    G09751423Courtesy of KIA
