Repair Procedures: Inspection

Visually check the belt for excessive wear, frayed cords etc.

If any defect has been found, replace the drive belt.

NOTE: Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.

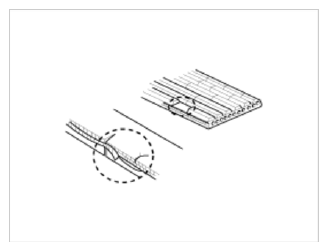

Fig 1: Identifying Belt For Excessive Wear, Frayed Cords
G09750708Courtesy of KIA MOTORS AMERICA, INC.
