Repair Procedures: Removal

  1. Remove the air duct (A).

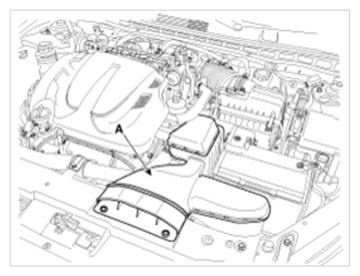

    Fig 1: Identifying Air Duct
    G09751085Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the battery (-) terminal (A) and then (+) terminal (B).
  3. Remove the battery mounting bracket (D) and the insulation pad (C), and then remove the battery (E).

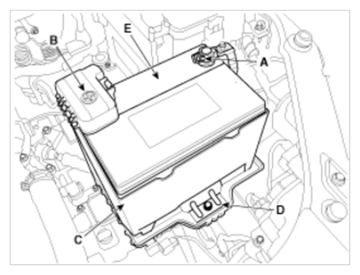

    Fig 2: Identifying Battery Components
    G09751086Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the front connector mounting clip (A).
  5. Remove the battery tray (B) after removing the bolts.

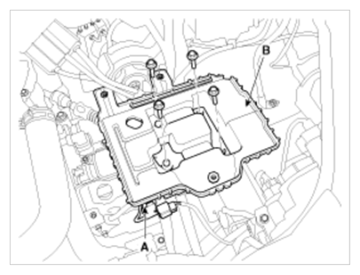

    Fig 3: Identifying Battery Tray And Front Connector Mounting Clip
    G09751087Courtesy of KIA MOTORS AMERICA, INC.
