Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.
  3. Disconnect the alternator connector (A) and cable (B) from the 'B' terminal.

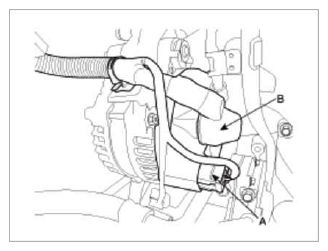

    Fig 1: Identifying Alternator Connector And Cable
    G09751078Courtesy of KIA MOTORS AMERICA, INC.
  4. To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).

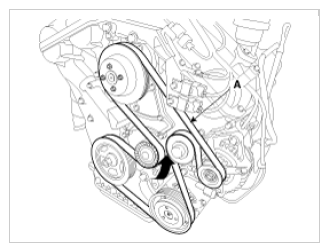

    Fig 2: Removing Drive Belt
    G09751079Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the alternator (A).

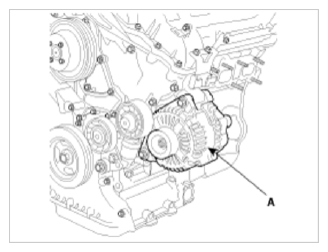

    Fig 3: Identifying Alternator
    G09751080Courtesy of KIA MOTORS AMERICA, INC.
