Repair procedures: Replacement: Removal

NOTE:

Remove the following items.
1. Front pillar trim
  (Refer to "INTERIOR TRIM ")
2. ECM mirror
  (Refer to the "MIRROR ")
3. Auto defogging sensor
  (Refer to the AUTO DEFOGGING SENSOR )
4. Rain sensor
  (Refer to the "RAIN SENSOR ")
5. LDWS unit
  (Refer to the "LDWS ")
6. Windshield wiper arm
  (Refer to the "COWL TOP COVER ")
7. Cowl top cover
  (Refer to the "COWL TOP COVER ")
8. Windshield glass deicer connector
  (Refer to the "WINDSHIELD WIPER ")

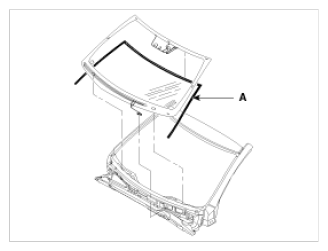

Using a screwdriver or remover, remove the windshield side molding (A).

Fig 1: Identifying Windshield Side Molding
Courtesy of KIA MOTORS AMERICA, INC.

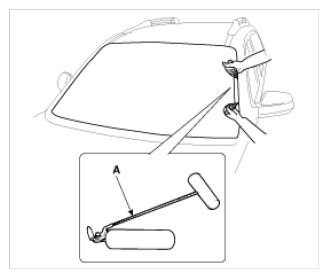

Cut out the windshield sealant using the sealant cutting tool (A) (09861-31100).

Fig 2: Cutting Out Windshield Sealant Using Sealant Cutting Tool
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
- Remove the rubber dam and fasteners from the body.
- Mask off surrounding surfaces before painting.

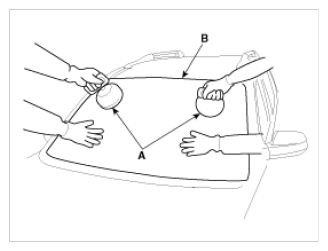

Remove the windshield (B) carefully using the glass holder (A).

Fig 3: Removing Windshield Using Glass Holder
Courtesy of KIA MOTORS AMERICA, INC.
