Main Crash Pad Assembly Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the following items:
    1. Front pillar trim

      (Refer to "INTERIOR TRIM ")

    2. Cowl side trim

      (Refer to "INTERIOR TRIM ")

    3. Floor console assembly

      (Refer to "CONSOLE ")

    4. Center fascia lower panel
    5. Cluster fascia panel
    6. Cluster assembly
    7. Audio or AVN head unit
    8. Center fascia upper panel
    9. LCD monitor assembly
    10. Crash pad lower panel
    11. Glove box housing
  2. Remove the steering wheel.

    (Refer to the STEERING WHEEL )

  3. Remove the multifunction switch assembly.

    (Refer to the MULTIFUNCTION SWITCH )

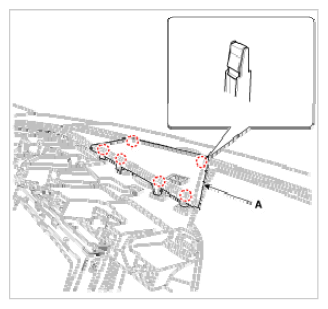

  4. Using a screwdriver or remover, remove the center speaker grill (A).
    Fig 1: Identifying Center Speaker Grill
    G09752303Courtesy of KIA MOTORS AMERICA, INC.

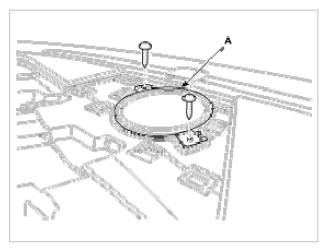

  5. After loosening the mounting screws, then remove the center speaker (A).
    Fig 2: Identifying Center Speaker
    G09752304Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the center speaker connector (A).

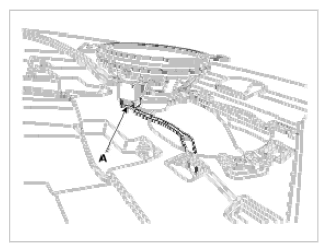

    Fig 3: Identifying Center Speaker Connector
    G09752305Courtesy of KIA MOTORS AMERICA, INC.

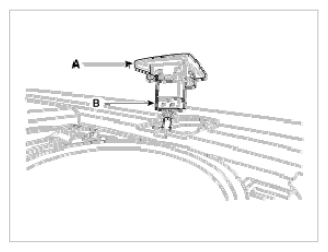

  7. Using a screwdriver or remover, remove the photo sensor (A).
  8. Disconnect the photo sensor connector (B).
    Fig 4: Identifying Photo Sensor Connector
    G09752306Courtesy of KIA MOTORS AMERICA, INC.
  9. After loosening the mounting screws, then remove the cub is (A).

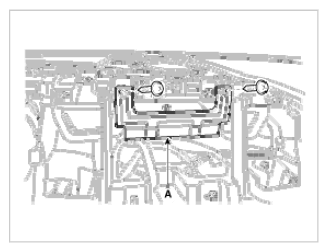

    Fig 5: Identifying Cub Mounting Screws
    G09752307Courtesy of KIA MOTORS AMERICA, INC.

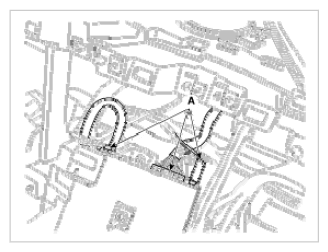

  10. Disconnect the cub is connector (A).
    Fig 6: Identifying Cub Connector
    G09752308Courtesy of KIA MOTORS AMERICA, INC.

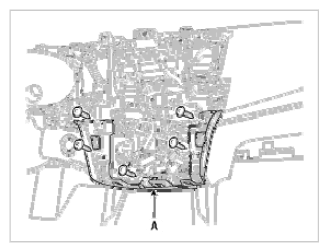

  11. After loosening the mounting screws, then remove the crash pad center panel (A).
    Fig 7: Identifying Crash Pad Center Panel
    G09752309Courtesy of KIA MOTORS AMERICA, INC.

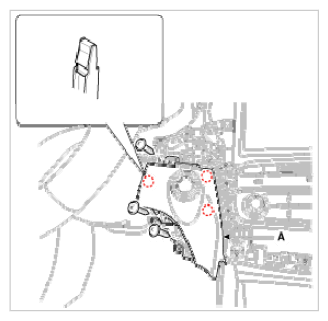

  12. After loosening the mounting screws, then remove the ignition key grommet (A).
    Fig 8: Identifying Ignition Key Grommet
    G09752310Courtesy of KIA MOTORS AMERICA, INC.
  13. Disconnect the start/stop button connector (A).

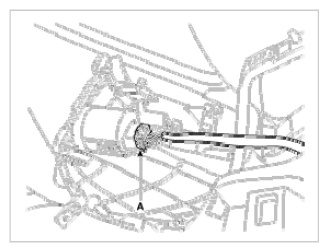

    Fig 9: Identifying Start/Stop Button Connector
    G09752311Courtesy of KIA MOTORS AMERICA, INC.

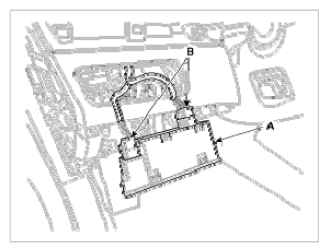

  14. Using a screwdriver or remover, remove the crash pad switch assembly (A).
  15. Disconnect the crash pad switch connector (B).
    Fig 10: Identifying Crash Pad Switch Assembly And Connector
    G09752312Courtesy of KIA MOTORS AMERICA, INC.
  16. Loosen the mounting bolts.

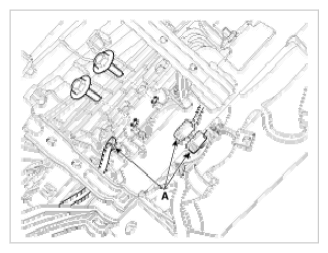

  17. Disconnect the passenger's airbag connectors (A).
    Fig 11: Identifying Passenger's Airbag Connectors
    G09752313Courtesy of KIA MOTORS AMERICA, INC.
  18. After loosening the mounting screw, bolts, nuts, then remove the main crash pad assembly (A).

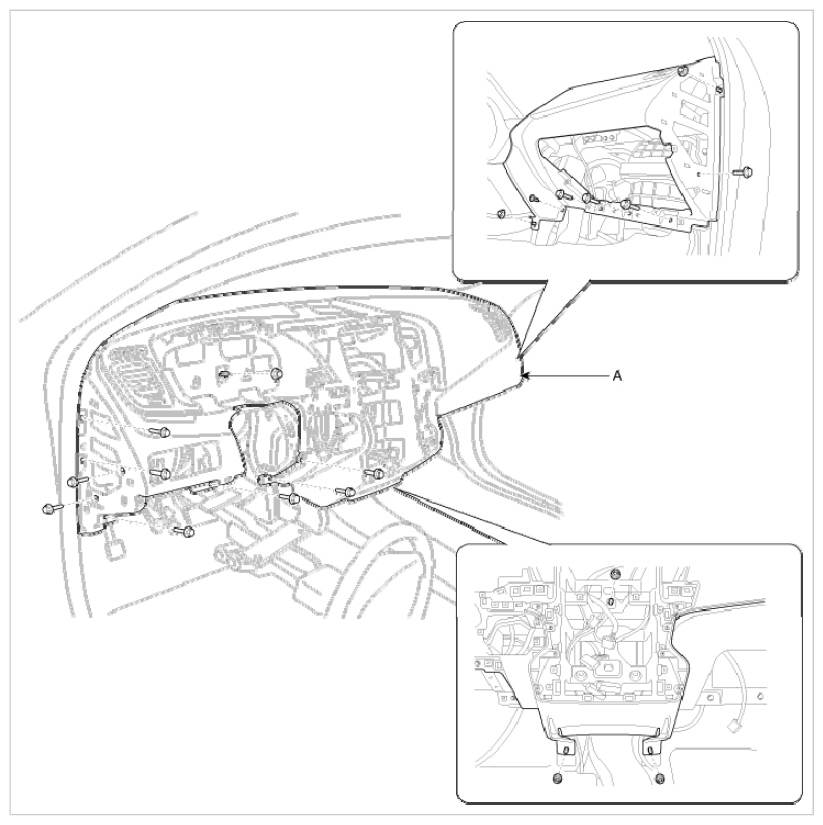

    Fig 12: Identifying Main Crash Pad Assembly Nut And Bolts
    G09752314Courtesy of KIA MOTORS AMERICA, INC.
  19. Installation is the reverse of removal.
    NOTE:
    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customers radio station presets.
