AVN Head Unit Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the center fascia lower panel.
After loosening the mounting screws, then remove the AVN head unit (A).

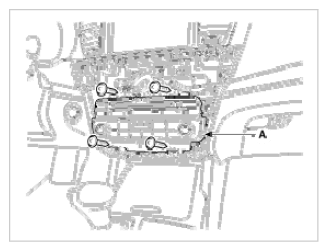

Fig 1: Identifying AVN Head Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) from the AVN head unit.

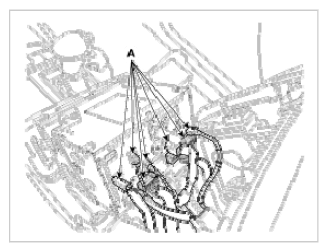

Fig 2: Identifying AVN Head Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
