General Information: General Description

This is DTC which is related with communication error between PSM and other units.

* Body CAN communication Control Units: IPM (Inter Panel Module), DDM (Drive Door Module), ADM (Assist Door Module), PSM (Power Seat Module), SCM (Steering Control Module), SMK (Smart Key Module).

^*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

^*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)

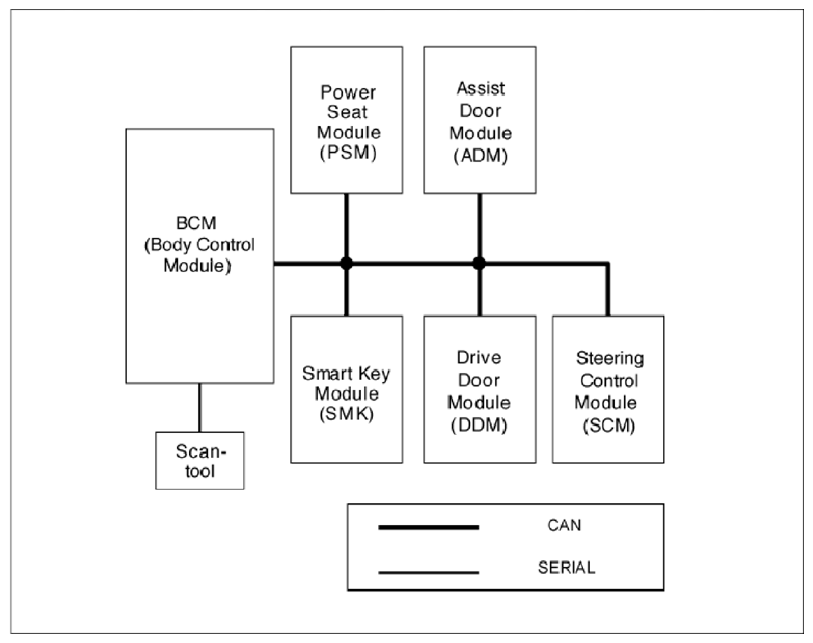

Fig 1: BCM - System Diagram

Courtesy of KIA MOTORS AMERICA, INC.
