Trunk Antenna

  1. Disconnect the negative(-) battery terminal.
  2. Remove the trunk transverse trim.

    (Refer to "INTERIOR TRIM ")

  3. Disconnect the trunk antenna connector (A) and remove the trunk antenna (B) after loosening nut (2EA).

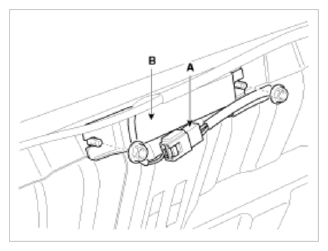

    Fig 1: Identifying Trunk Antenna And Connector
    G09752621Courtesy of KIA MOTORS AMERICA, INC.
