Interior 2 Antenna

  1. Disconnect the negative(-) battery terminal.
  2. Remove the center console.

    (Refer to "CONSOLE ")

  3. Disconnect the interior 2 antenna connector (A).

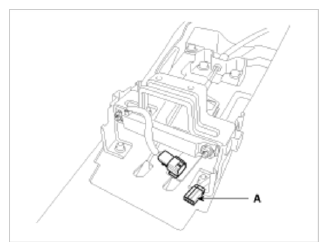

    Fig 1: Identifying Interior 2 Antenna Connector
    G09752619Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the interior 1 antenna (A) after loosening the mounting nuts (2EA).

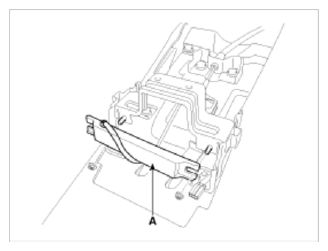

    Fig 2: Identifying Interior 1 Antenna
    G09752620Courtesy of KIA MOTORS AMERICA, INC.
