Interior 1 Antenna

  1. Disconnect the negative(-) battery terminal.
  2. Remove the center console.

    (Refer to "CONSOLE ")

  3. Remove the interior 1 antenna (A) after disconnecting the connector and loosening the mounting nuts (2EA).

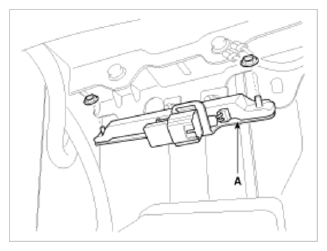

    Fig 1: Identifying Interior 1 Antenna
    G09752618Courtesy of KIA MOTORS AMERICA, INC.
