FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

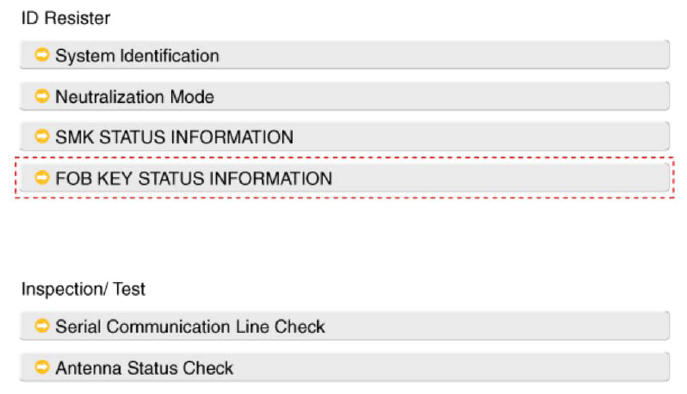

    Fig 1: Display - FOB KEY Status Information Screen
    G09752587Courtesy of KIA MOTORS AMERICA, INC.

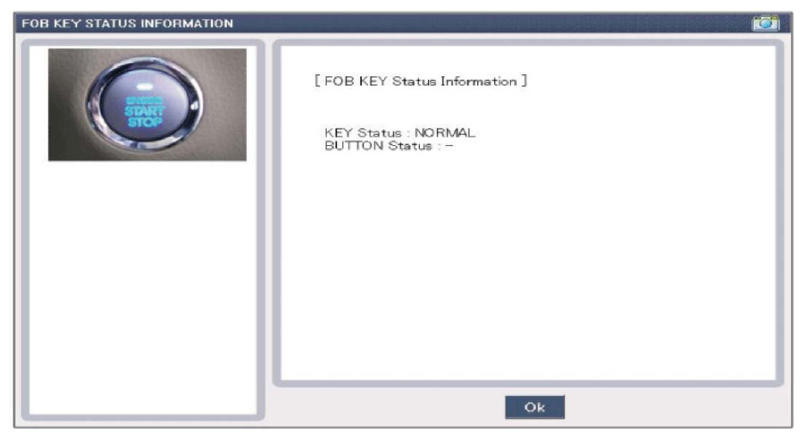

    Fig 2: Display - FOB KEY Status Information Screen
    G09752588Courtesy of KIA MOTORS AMERICA, INC.
