Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD ")

  3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the bolt.

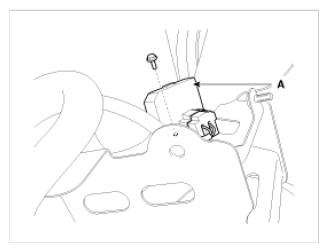

    Fig 1: Identifying Smartra Unit
    G09797547Courtesy of KIA MOTORS AMERICA, INC.
