Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the auto light sensor (A) from crash pad upper side by using screw (-) driver.

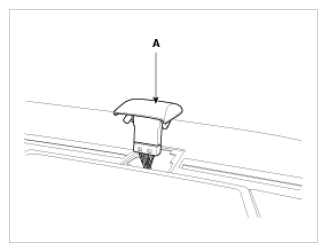

    Fig 1: Identifying Auto Light Sensor
    G09753019Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the auto light sensor connector.
