Repair Procedures: Removal

  1. Remove the trunk trim in the trunk after removing the screws and clips.

    (Refer to "TRUNK ")

  2. Remove the camera holder (A) as shown in illustration arrow direction, and then remove the back view camera (B).

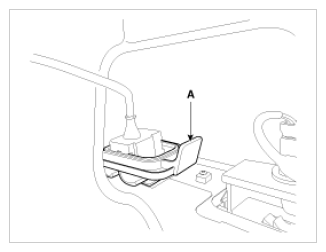

    Fig 1: Identifying Camera Holder
    G09753154Courtesy of KIA MOTORS AMERICA, INC.

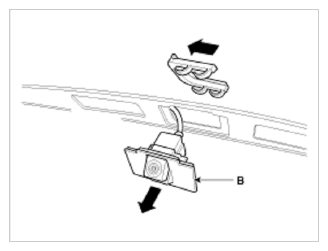

    Fig 2: Removing Camera Holder
    G09753155Courtesy of KIA MOTORS AMERICA, INC.
