Repair procedures: Installation

CAUTION:

Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.

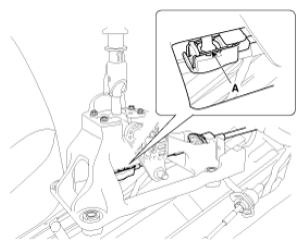

Install the "N" position pin (A).

Fig 1: Identifying "N" Position Pin

Courtesy of KIA MOTORS AMERICA, INC.

Install the shift cable (A).

Fig 2: Identifying Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

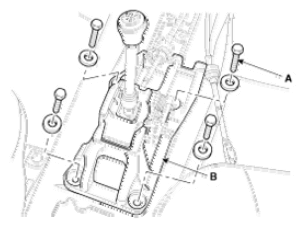

Install the shift lever assembly (B) by tightening the bolts (A-4ea).
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 3: Identifying Shift Lever Assembly And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Shift the shift lever to 3rd gear.
Re-adjust select cable.

Fig 5: Re-Adjusting Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Insert the select cable (A) to the shift lever assembly pin (B).

Fig 6: Identifying Select Cable And Shift Lever Assembly Pin
Courtesy of KIA MOTORS AMERICA, INC.
After shifting 2nd gear, checking the left select gab about 1.1mm (if not, loop no. 3 ~ 6).
Install the snap pin (A).

Fig 7: Identifying Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the "N" position pin (A) after assembling select cable. (Resuse)

Fig 8: Identifying "N" Position Pin
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. Operating lever of body side, check secure operation of lever of T/M side after assembly.
2. When lever is engaged to "R", check the position of "skirt".
3. When lever is shifted to each position, if stop occur between two position, re-adjust select cable.
