Home >> Kia >> 2013 >> Soul Base, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 1.6L >> Control Cable >> Components and Components Location >> Components

Components and Components Location: Components

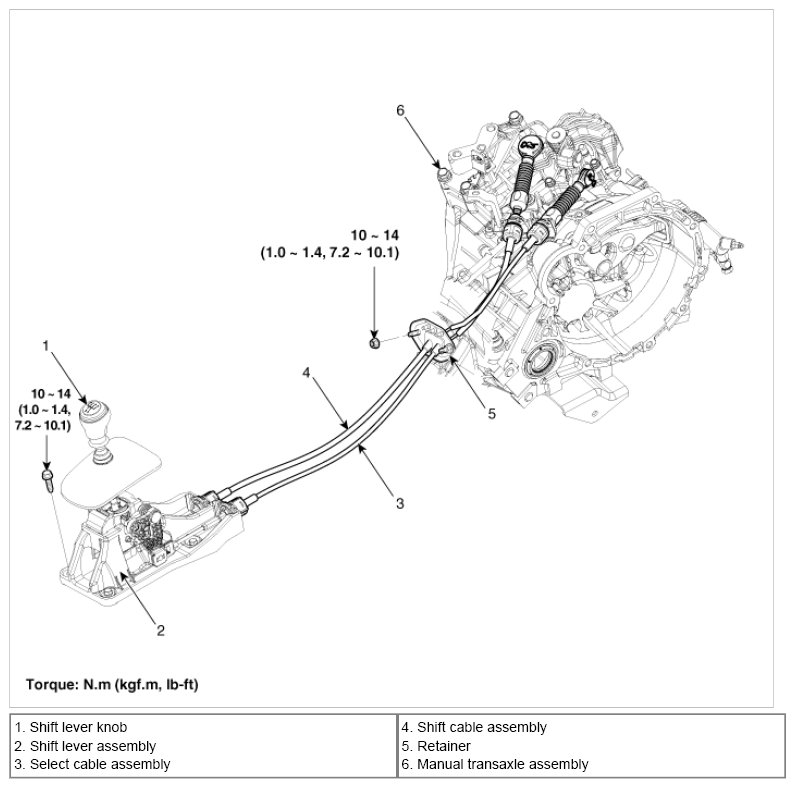

Fig 1: Control Cable With Torque Specifications

G08328203

Courtesy of KIA MOTORS AMERICA, INC.
