Tailgate Switch

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the tailgate trim.
Refer to "TAILGATE TRIM "
Disconnect the license lamp and tailgate switch connector (A). Disconnect the back warning camera connector (B).

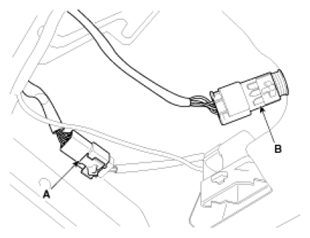

Fig 1: Identifying License Lamp/Tailgate Switch Connector & Back Warning Camera Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the screws (2 EA) and clips (4 EA). Remove the tailgate garnish (A).

Fig 2: Identifying Tailgate Garnish & Screws
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the tailgate outside handle mounting screw. Remove the outside handle and license lamp (A).

Fig 3: Identifying Outside Handle & License Lamp

Courtesy of KIA MOTORS AMERICA, INC.
