Signal Waveform & Data

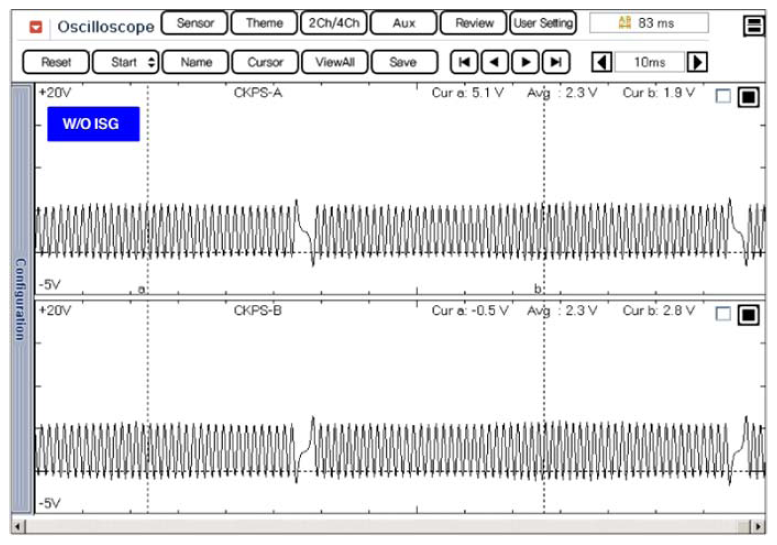

Fig 1: Display - Crankshaft Position Sensor (A And B) Signal Waveform (Without ISG)

Courtesy of KIA MOTORS AMERICA, INC.

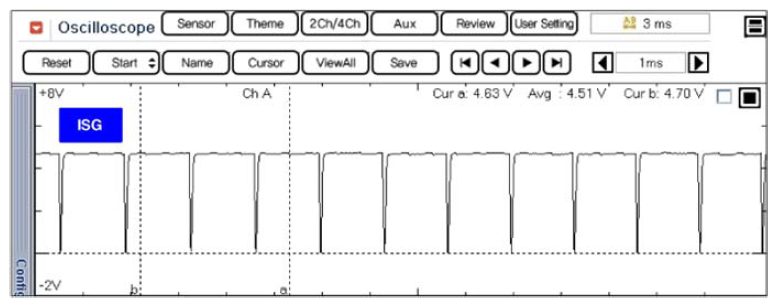

Fig 2: Display - Crankshaft Position Sensor (A And B) Signal Waveform (With ISG)

Courtesy of KIA MOTORS AMERICA, INC.

This example shows a typical Crankshaft Position Sensor(CkPS) waveform at idle. The ECM controls the injection and ignition timing by using these signals.
