Engine Performance
>>
Engine Control Systems
>>
Idle Stop & Go (ISG) System - 1.6L
>>
DCDC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
>>
400W
Circuit Diagram: 400W

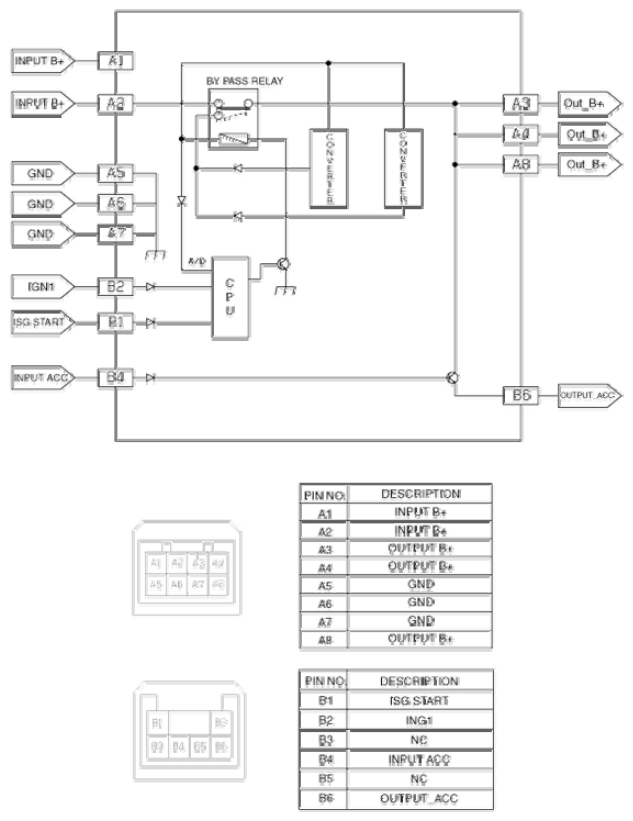

Fig 1: DC/DC Converter (400W) - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
In the ISG mode, if the power of an audio system turnsOFF by drawdown while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
