Repair procedures: Replacement

  1. Remove the sub frame. (Refer to FRONT STABILIZER )

    Tightening torque:

    156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

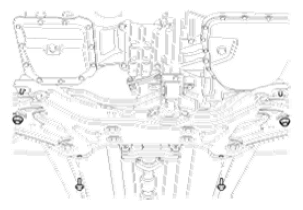

    Fig 1: Identifying Sub Frame
    G08328449Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the front lower arm.
  3. Remove the front strut assembly.
  4. Remove the front stabilizer.
  5. Remove the steering gear box.
  6. Installation is the reverse of removal.
