WCS Reset

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS RESET " mode.
  3. You will see comments and current weight measured.
  4. Make sure the measure weight is caused by occupant or tools or interference.
  5. And then press "ENTER"

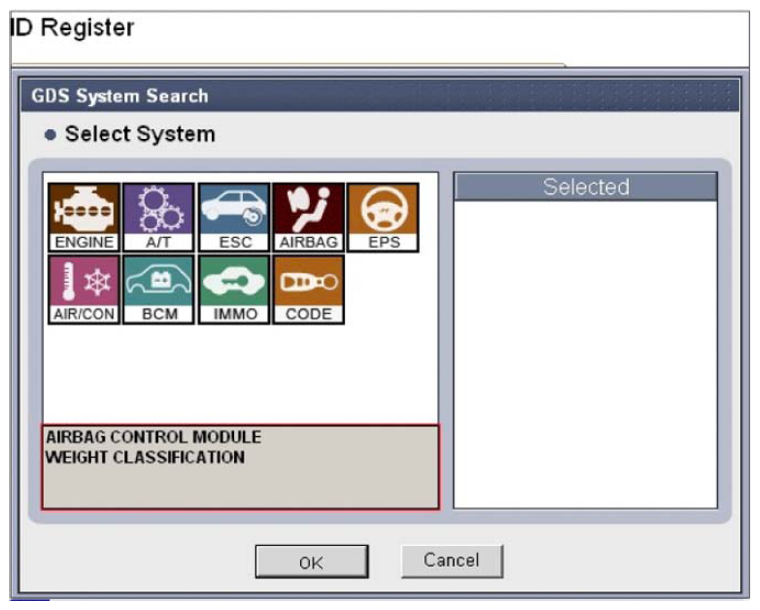

    Fig 1: Display - ID Register Select System
    G08331455Courtesy of KIA MOTORS AMERICA, INC.
  6. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode of WCS(Weight Classification).
  7. Monitor diagnostic trouble code and present of trouble code.

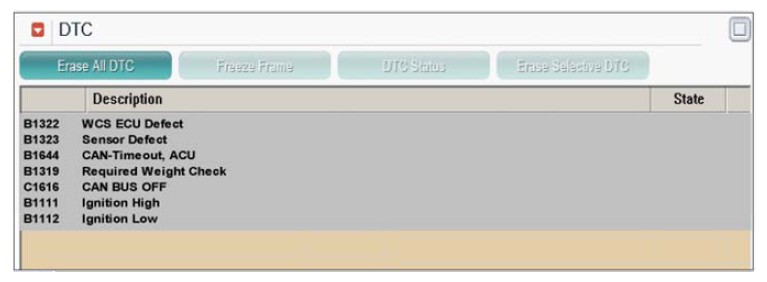

    Fig 2: Display - Trouble Code Screen
    G08331456Courtesy of KIA MOTORS AMERICA, INC.
  8. Is DTC present problem?

    YES

    • Go to Procedure according to each WCS DTC.
