Exterior Bumper Antenna

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Lift the vehicle up using the lift.

    Refer to "LIFT AND SUPPORT POINTS ".

  3. Remove the rear bumper.

    Refer to "REAR BUMPER ".

  4. Disconnect the antenna connector (A) on the center of rear bumper.

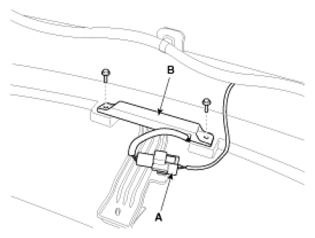

    Fig 1: Identifying Exterior Bumper Antenna Connector
    G07426752Courtesy of KIA MOTORS AMERICA, INC.
  5. After loosening the screws (2 EA), remove the exterior bumper antenna (B).
