Interior 3 Antenna: Buzzer

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left fender.

    Refer to "FENDER ".

  3. Disconnect the connector, then remove the buzzer (A).

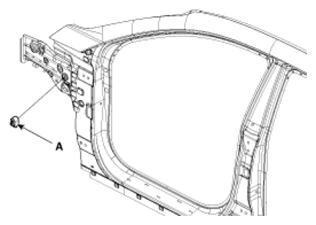

Fig 1: Identifying Buzzer
G07426753Courtesy of KIA MOTORS AMERICA, INC.
