Components Location

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

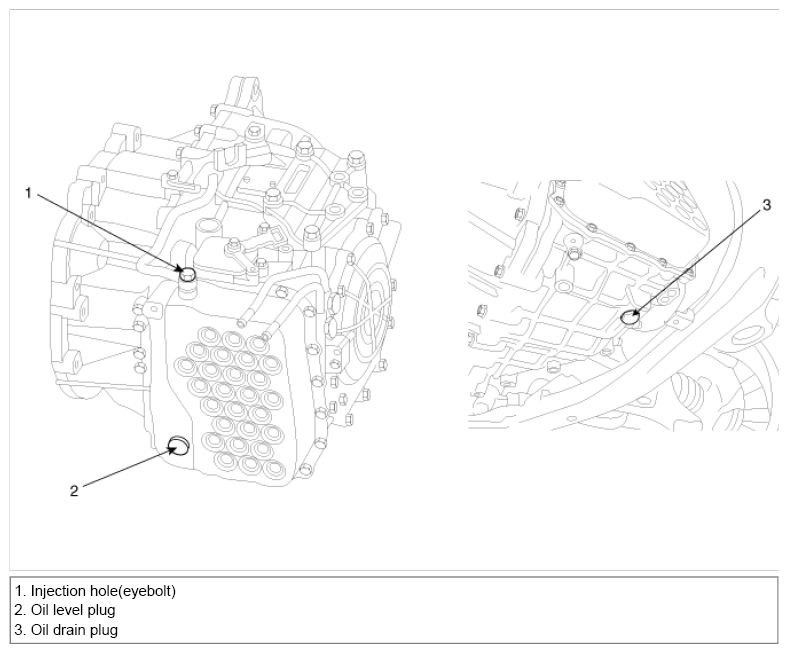

Fig 1: Identifying Injection Hole (Eyebolt), Oil Level & Oil Drain Plugs
G07423948Courtesy of KIA MOTORS AMERICA, INC.
