Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the connector (A) of the blower motor.
  3. Remove the blower motor (B) after loosening the mounting screws.

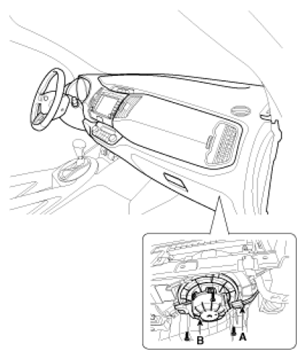

    Fig 1: Identifying Blower Motor & Connector
    G07425095Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
