Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Pressure Side Impact Sensor

CAUTION:

Removal of the airbag must be performed according to the precautions/procedures described previously.
Before disconnecting the side impact sensor connector(s), disconnect the side airbag connector(s).
Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.

Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
Remove the front door trim. Refer to FRONT DOOR .
Disconnect the front side impact sensor connector (A) and remove the front side impact sensor mounting screws (B).

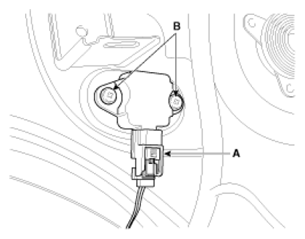

Fig 1: Identifying Front Side Impact Sensor Connector & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the screw grommets (A).

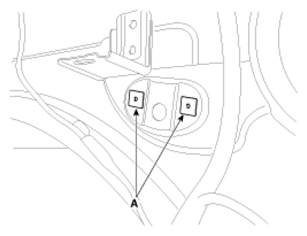

Fig 2: Identifying Screw Grommets

Courtesy of KIA MOTORS AMERICA, INC.
