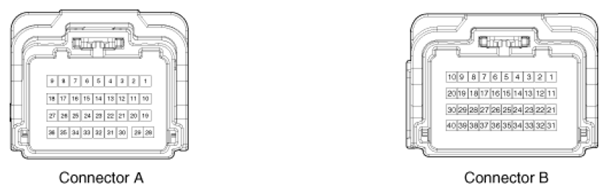

Harness Connector
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
PIN DESCRIPTION CHART
| Pin | Function (Connector A) | Pin | Function (Connector A) |
|---|---|---|---|
| 1 | Ignition | 1 | Pressure side impact sensor (Driver) High |
| 2 | - | 2 | Side impact sensor (Driver) High |
| 3 | Airbag warning lamp | 3 | Seat belt pretensioner (Driver) High |
| 4 | (1st stage) Driver airbag High | 4 | Seat belt pretensioner (Driver) Low |
| 5 | (1st stage) Driver airbag Low | 5 | Side airbag (Driver) High |
| 6 | - | 6 | Side airbag (Driver) Low |
| 7 | - | 7 | - |
| 8 | Front impact sensor (Driver) High | 8 | - |
| 9 | CAN_High | 9 | - |
| 10 | - | 10 | - |
| 11 | - | 11 | Pressure side impact sensor (Driver) Low |
| 12 | Telltale warning lamp | 12 | Side impact sensor (Driver) Low |
| 13 | (1st stage) Passenger airbag High | 13 | Seat belt pretensioner (Passenger) High |
| 14 | (1st stage) Passenger airbag Low | 14 | Seat belt pretensioner (Passenger) Low |
| 15 | - | 15 | Side airbag (Passenger) High |
| 16 | - | 16 | Side airbag (Passenger) Low |
| 17 | Front impact sensor (Driver) Low | 17 | - |
| 18 | CAN_Low | 18 | - |
| 19 | Ground | 19 | - |
| 20 | - | 20 | - |
| 21 | Crash Output | 21 | Pressure side impact sensor (Passenger) High |
| 22 | (2nd stage) Driver airbag High | 22 | Side impact sensor (Passenger) High |
| 23 | (2nd stage) Driver airbag Low | 23 | Curtain airbag (Driver) High |
| 24 | - | 24 | Curtain airbag (Driver) Low |
| 25 | - | 25 | Anchor pretensioner (Driver) High |
| 26 | Front impact sensor (Passenger) High | 26 | Anchor pretensioner (Driver) Low |
| 27 | - | 27 | - |
| 28 | - | 28 | - |
| 29 | - | 29 | Seat buckle switch (Passenger) High |
| 30 | Seat belt reminder interface (Passenger) | 30 | Seat buckle switch (Passenger) Low |
| 31 | (2nd stage) Passenger airbag High | 31 | Pressure side impact sensor (Passenger) Low |
| 32 | (2nd stage) Passenger airbag Low | 32 | Side impact sensor (Passenger) Low |
| 33 | - | 33 | Curtain airbag (Passenger) High |
| 34 | - | 34 | Curtain airbag (Passenger) Low |
| 35 | Front impact sensor (Passenger) Low | 35 | Anchor pretensioner (Passenger) High |
| 36 | - | 36 | Anchor pretensioner (Passenger) Low |
| 37 | - | ||
| 38 | - | ||
| 39 | Seat buckle switch (Driver) High | ||
| 40 | Seat buckle switch (Driver) Low |
