Luggage Side Trim Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to protect your hands.
  • Use a plastic panel removal tool to remove interior trip pieces to without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat.

    Refer to "REAR SEAT "

  2. Remove the transverse trim.
  3. Remove the rear door scuff trim.
  4. After loosening the mounting screws, then remove the luggage side trim.
  5. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.

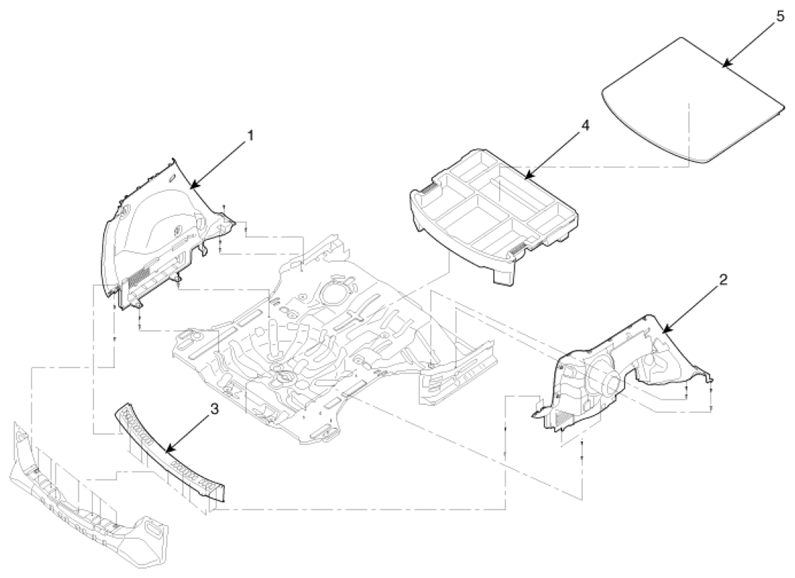

Fig 1: Identifying Luggage Side Trim Components
G07424477Courtesy of KIA MOTORS AMERICA, INC.
