Components and Components Location (F21): Components

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

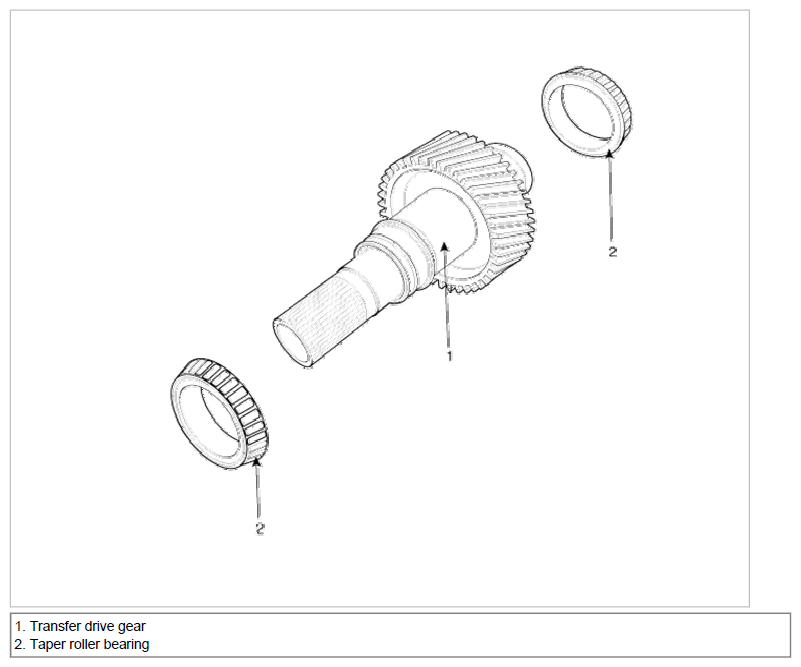

Fig 1: Identifying Transfer Drive Gear Components
G06861588Courtesy of HYUNDAI MOTOR CO.
