Repair Procedures (F21): Removal

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

Remove the 4WD coupling assembly bolts (A-3ea) mounted to the rear propeller shaft (B).

Fig 1: Identifying 4WD Coupling Assembly Bolts
Courtesy of HYUNDAI MOTOR CO.
Using a flat tool, separate the propeller shaft from 4WD coupling assembly.

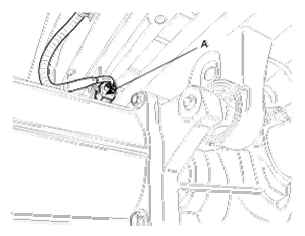

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the 4WD coupling assembly mounting bolts (A-4ea).

Fig 3: Identifying 4WD Coupling Assembly Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Using a flat tool, separate the 4WD coupling assembly from the rear differential carrier assembly.
