Repair procedures: Removal

Preparation
1. Remove the rear seat cushion (Refer to "REAR SEAT " in BD group).

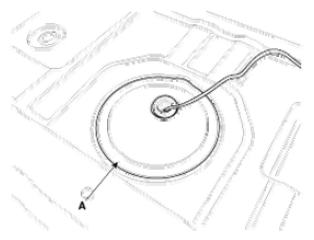

2. Open the service cover (A).

  Fig 1: Identifying Service Cover
  Courtesy of KIA MOTORS AMERICA, INC.

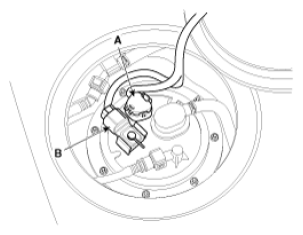

3. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).

  Fig 2: Identifying Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Start the engine and wait until the fuel engine has stalled.
5. After engine stalls, turn the ignition switch to OFF position.

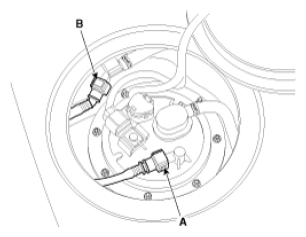

Disconnect the fuel feed quick-connector (A) and the vapor tube quick-connector (B).

Fig 3: Identifying Fuel Feed And Vapor Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle and support the fuel tank with a jack.
Disconnect the canister close valve connector (A).

Fig 4: Identifying Canister Close Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center muffler (Refer to REMOVAL AND INSTALLATION .

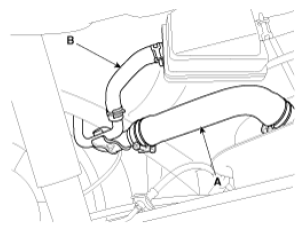

Disconnect the fuel filler hose (A) and the ventilation hose (B).

Fig 5: Identifying Fuel Filler Hose And Ventilation Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank air filter installation bolt (A).

Fig 6: Identifying Fuel Tank Air Filter Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.

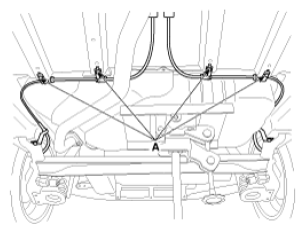

Remove the brake line bracket mounting bolt (A).

Fig 7: Identifying Brake Line Bracket Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

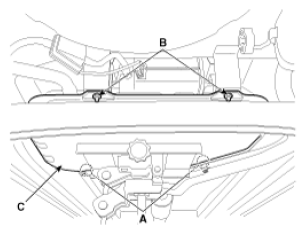

Remove the fuel tank mounting bolts (A) and nuts (B), and then remove the fuel tank (C).

Fig 8: Identifying Fuel Tank, Fuel Tank Mounting Bolts And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
