Repair procedures: Inspection

Remove the crash pad side switch assembly (A) from the switch panel on the crash pad of the driver's side.

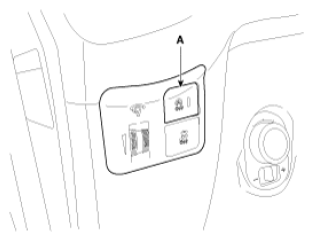

Fig 1: Identifying Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ISG OFF switch connector (A).

Fig 2: Identifying ISG OFF Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between the switch 2 and 3 terminals as the ISG OFF switch is engaged.

Fig 3: Identifying ISG OFF Switch Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: ISG OFF Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
