Components and Components Location: Components

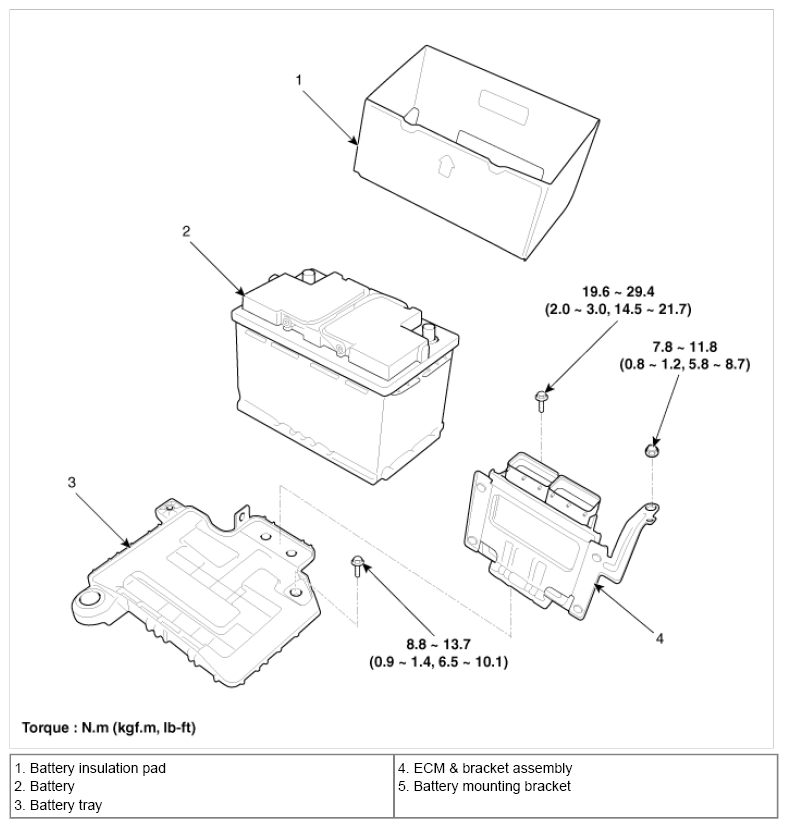

Fig 1: AGM Battery Replacement Components With Torque Specifications
G08328051Courtesy of KIA MOTORS AMERICA, INC.
