General Information: General Description

This is DTC which is related with communication error between PDM and other units.

Body CAN communication Control Units: BCM(Body Control Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key).

^*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

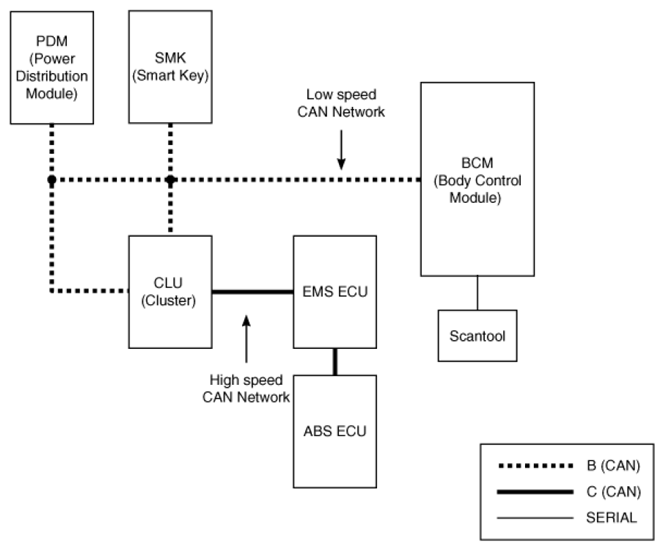

Fig 1: Smart Key Communication Diagram

Courtesy of KIA MOTORS AMERICA, INC.
